地址：河北省任丘市城东野王庄齿形链
点击量：发布时间：2019-03-25 20:19
|
GB链号
|
节距
|
链宽
|
销轴
直径 |
销轴
长度 |
孔间到
齿尖距离 |
链板
高度 |

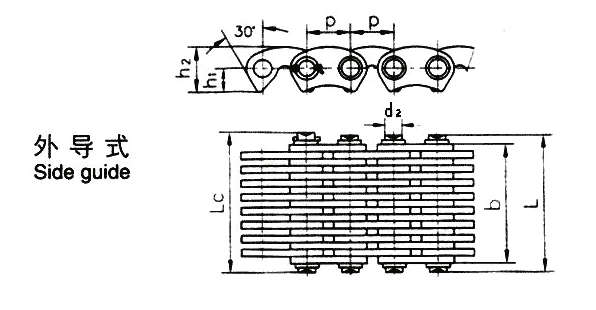

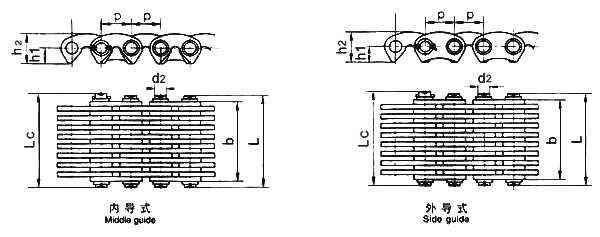

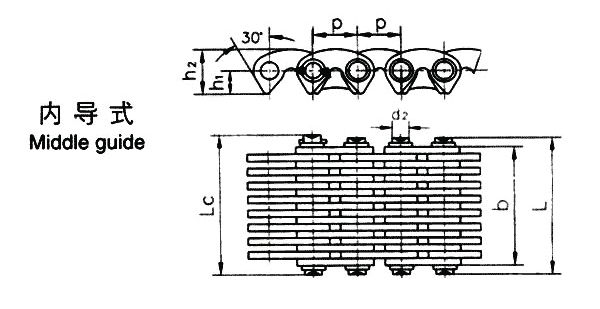

导向形式
|
片数
|
极限
拉伸 |
平均拉伸
载荷 |
每米
长重 |
|
|
P
|
b min
|
d2max
|
L max
|
Lc max
|
h1
|
h2max
|
|
|
Q
|
Q0
|
q
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
n
|
KN
|
KN
|
kg/m
|
|
|
CL06
|
9.525
|
13.5
|
3.95
|
18.5
|
20.0
|
5.3
|
10.0
|
外(Outside)
|
9
|
10.0
|
11.3
|
0.60
|
|
16.5
|
21.5
|
23.0
|
外(Outside)
|
11
|
12.5
|
14.2
|
0.73
|
|||||
|
19.5
|
24.5
|
26.0
|
外(Outside)
|
13
|
15.0
|
16.9
|
0.85
|
|||||
|
22.5
|
27.5
|
29.0
|
外(Outside)
|
15
|
17.5
|
19.6
|
1.00
|
|||||
|
28.5
|
33.5
|
35.0
|
内(inside)
|
19
|
22.5
|
25.2
|
1.26
|
|||||
|
CL08
|
12.7
|
19.5
|
5.08
|
24.5
|
26.0
|
7.0
|
13.4
|
外(Outside)
|
13
|
23.4
|
26.1
|
1.15
|
|
22.5
|
27.5
|
29.0
|
外(Outside)
|
15
|
27.4
|
30.6
|
1.33
|
|||||
|
25.5
|
30.5
|
32.0
|
外(Outside)
|
17
|
31.3
|
35.2
|
1.50
|
|||||
|
28.5
|
33.5
|
35.0
|
内(inside)
|
19
|
35.2
|
39.4
|
1.68
|
|||||
|
34.5
|
39.5
|
41.0
|
内(inside)
|
23
|
43.0
|
48.3
|
2.04
|
|||||
|
40.5
|
45.5
|
47.0
|
内(inside)
|
27
|
50.8
|
56.9
|
2.39
|
|||||
|
46.5
|
51.5
|
53.0
|
内(inside)
|
31
|
58.6
|
65.8
|
2.74
|
|||||
|
52.5
|
57.5
|
59.0
|
内(inside)
|
35
|
66.4
|
74.4
|
3.10
|
|||||
|
CL10
|
15.875
|
30.0
|
5.92
|
37.0
|
38.2
|
8.7
|
16.7
|
内(inside)
|
15
|
45.6
|
50.6
|
2.21
|
|
38.0
|
45.0
|
46.2
|
内(inside)
|
19
|
58.6
|
65.0
|
2.80
|
|||||
|
46.0
|
53.0
|
54.2
|
内(inside)
|
23
|
71.7
|
79.5
|
3.39
|
|||||
|
54.0
|
61.0
|
62.4
|
内(inside)
|
27
|
84.7
|
94.3
|
3.99
|
|||||
|
62.0
|
69.0
|
70.4
|
内(inside)
|
31
|
97.7
|
108.4
|
4.58
|
|||||
|
CL12
|
19.05
|
38.0
|
6.9
|
45.0
|
46.5
|
10.5
|
20.0
|
内(inside)
|
19
|
70.0
|
77.4
|
3.37
|
|
46.0
|
53.0
|
54.5
|
内(inside)
|
23
|
86.0
|
95.4
|
4.08
|
|||||
|
54.0
|
61.0
|
62.8
|
内(inside)
|
27
|
102.0
|
113.3
|
4.78
|
|||||
|
62.0
|
69.0
|
70.8
|
内(inside)
|
31
|
117.0
|
129.8
|
5.50
|
|||||
|
70.0
|
77.0
|
78.8
|
内(inside)
|
35
|
133.0
|
147.8
|
6.20
|
|||||
|
CL16
|
25.4
|
45.0
|
8.9
|
52.0
|
53.5
|
14.0
|
26.7
|
内(inside)
|
15
|
111.0
|
123.3
|
5.31
|
|
51.0
|
58.0
|
59.5
|
内(inside)
|
17
|
125.0
|
138.7
|
6.02
|
|||||
|
57.0
|
64.0
|
65.5
|
内(inside)
|
19
|
141.0
|
156.6
|
6.37
|
|||||
|
69.0
|
76.2
|
77.7
|
内(inside)
|
23
|
172.0
|
190.8
|
8.15
|
|||||
|
81.0
|
88.2
|
89.7
|
内(inside)
|
27
|
203.0
|
225.3
|
9.57
|
|||||
|
93.0
|
100.2
|
101.7
|
内(inside)
|
31
|
235.0
|
260.9
|
10.98
|
|||||
|
CL20
|
31.75
|
57.0
|
10.84
|
66.6
|
69.6
|
17.5
|
33.4
|
内(inside)
|
19
|
165.0
|
183.1
|
8.42
|
|
69.0
|
78.6
|
81.6
|
内(inside)
|
23
|
201.0
|
223.2
|
10.19
|
|||||
|
81.0
|
90.6
|
93.6
|
内(inside)
|
27
|
237.0
|
263.2
|
11.96
|
|||||
|
93.0
|
102.6
|
105.6
|
内(inside)
|
31
|
273.0
|
303.3
|
13.73
|
|||||
|
105.0
|
114.6
|
117.6
|
内(inside)
|
35
|
310.0
|
341.0
|
15.50
|
|||||
|
117.0
|
126.6
|
129.6
|
内(inside)
|
39
|
346.0
|
380.7
|
17.27
|
|||||
|
ANSI 链号
|
节距
|
链宽
|
销轴
直径 |
销轴
长度 |
孔间到
齿尖距离 |
链板
高度 |
导向
形式 |
片数
|
极限
拉伸 |
平均拉伸
载荷 |
每米
长重 |
|
|
P
|
b min
|
d2max
|
L max
|
Lc max
|
h1
|
h2max
|
|
|
Q
|
Q0
|
q
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
n
|
KN
|
KN
|
kg/m
|
|
|
C4-120
|
12.7
|
19.5
|
5.08
|
24.5
|
26.0
|
6.62
|
12.1
|
内(inside)
|
13
|
20.0
|
22.3
|
1.20
|
|
C4-123
|
22.5
|
27.5
|
29.0
|
内(inside)
|
15
|
23.0
|
25.7
|
1.37
|
||||
|
C4-129
|
28.5
|
33.5
|
35.0
|
内(inside)
|
19
|
28.5
|
31.6
|
1.72
|
||||
|
C4-132
|
31.5
|
36.5
|
38.0
|
内(inside)
|
21
|
31.5
|
34.8
|
1.89
|
||||
|
C4-138
|
37.5
|
42.5
|
44.0
|
内(inside)
|
25
|
38.0
|
42.1
|
2.22
|
||||
|
C4-150
|
49.5
|
54.5
|
56.0
|
内(inside)
|
33
|
50.0
|
55.6
|
2.90
|
||||
|
C4-320
|
19.5
|
24.5
|
26.0
|
外(Outside)
|
13
|
20.0
|
22.2
|
1.21
|
||||
|
C4-323
|
22.5
|
27.5
|
29.0
|
外(Outside)
|
15
|
23.0
|
25.7
|
1.38
|
||||
|
C4-329
|
28.5
|
33.5
|
35.0
|
外(Outside)
|
19
|
28.5
|
31.6
|
1.73
|
||||
|
C4-332
|
31.5
|
36.5
|
38.0
|
外(Outside)
|
21
|
31.5
|
34.9
|
1.90
|
||||
|
C4-338
|
37.5
|
42.5
|
44.0
|
外(Outside)
|
25
|
38.0
|
42.3
|
2.23
|
||||
