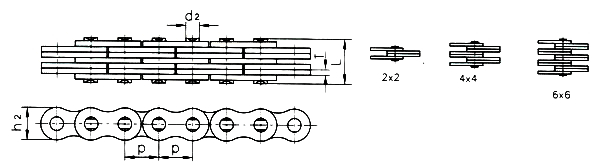

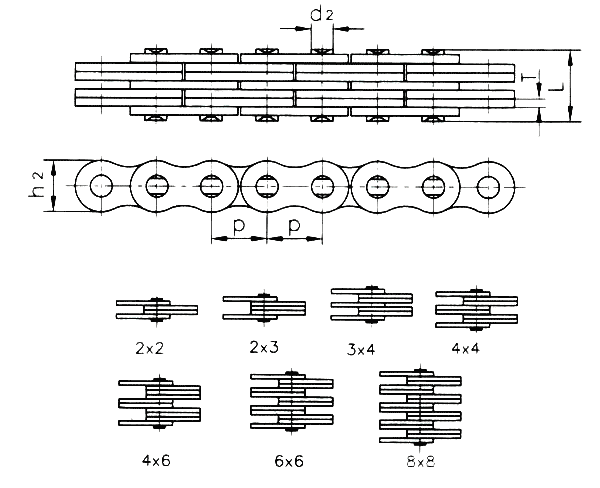

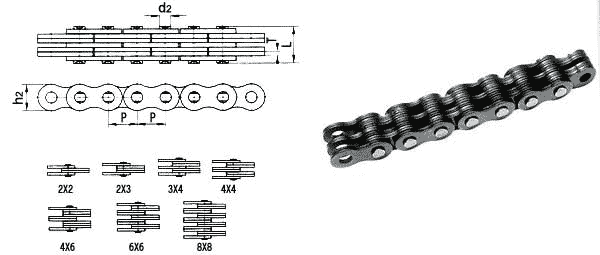

ISO链号
|
ANSI 链号
|
节距
|
链板组合
|
链板高度
|
链板厚度
|
销轴直径
|
销轴长度
|
极限拉伸载荷
|
平均拉伸载荷
|
每米长重
|
|
P
|
|
h2 max
|
T max
|
d2 max
|
L max
|
Q min
|
Qo
|
q
|
||
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
||
|
LH0822
|
BL422
|
12.7
|
2×2
|
12.07
|
2.08
|
5.09
|
11.15
|
22.2
|
27.9
|
0.64
|
|
LH0823
|
BL423
|
2×3
|
13.16
|
22.2
|
27.6
|
0.8
|
||||
|
LH0834
|
BL434
|
3×4
|
17.4
|
33.4
|
41.6
|
1.12
|
||||
|
LH0844
|
BL444
|
4×4
|
19.51
|
44.5
|
56.0
|
1.28
|
||||
|
LH0846
|
BL446
|
4×6
|
23.75
|
44.5
|
56.2
|
1.6
|
||||
|
LH0866
|
BL466
|
6×6
|
27.99
|
66.7
|
81.7
|
1.92
|
||||
|
LH0888
|
BL488
|
8×8
|
36.45
|
89.0
|
109.5
|
2.56
|
||||
|
LH1022
|
BL522
|
15.875
|
2×2
|
15.09
|
2.44
|
5.96
|
12.9
|
33.4
|
42.8
|
0.88
|
|
LH1023
|
BL523
|
2×3
|
15.37
|
33.4
|
42.9
|
1.1
|
||||
|
LH1034
|
BL534
|
3×4
|
20.32
|
48.9
|
63.7
|
1.5
|
||||
|
LH1044
|
BL544
|
4×4
|
22.78
|
66.7
|
84.5
|
1.8
|
||||
|
LH1046
|
BL546
|
4×6
|
27.74
|
66.7
|
84.6
|
2.2
|
||||
|
LH1066
|
BL566
|
6×6
|
32.69
|
100.1
|
125.1
|
2.65
|
||||
|
LH1088
|
BL588
|
8×8
|
42.57
|
133.4
|
169.8
|
3.5
|
||||
|
LH1222
|
BL622
|
19.05
|
2×2
|
18.11
|
3.3
|
7.94
|
17.37
|
48.9
|
63.6
|
1.45
|
|
LH1223
|
BL623
|
2×3
|
20.73
|
48.9
|
63.7
|
1.8
|
||||
|
LH1234
|
BL634
|
3×4
|
27.43
|
75.6
|
102.6
|
2.5
|
||||
|
LH1244
|
BL644
|
4×4
|
30.78
|
97.9
|
122.6
|
2.9
|
||||
|
LH1246
|
BL646
|
4×6
|
37.49
|
97.9
|
122.5
|
3.6
|
||||
|
LH1266
|
BL666
|
6×6
|
44.2
|
146.8
|
190.8
|
4.3
|
||||
|
LH1288
|
BL688
|
8×8
|
57.61
|
195.7
|
238.9
|
5.8
|
||||
|
LH1622
|
BL822
|
25.4
|
2×2
|
24.13
|
4.09
|
9.54
|
21.34
|
84.5
|
108.2
|
2.2
|
|
LH1623
|
BL823
|
2×3
|
25.48
|
84.5
|
108.5
|
2.7
|
||||
|
LH1634
|
BL834
|
3×4
|
33.76
|
129.0
|
143.6
|
3.8
|
||||
|
LH1644
|
BL844
|
4×4
|
37.90
|
169.0
|
214.7
|
4.3
|
||||
|
LH1646
|
BL846
|
4×6
|
46.18
|
169.0
|
214.6
|
5.4
|
||||
|
LH1666
|
BL866
|
6×6
|
54.46
|
253.6
|
324.7
|
6.5
|
||||
|
LH1688
|
BL888
|
8×8
|
71.02
|
338.1
|
432.7
|
8.6
|
||||
|
LH2022
|
BL1022
|
31.75
|
2×2
|
30.18
|
4.9
|
11.11
|
25.37
|
115.6
|
146.9
|
3.4
|
|
LH2023
|
BL1023
|
2×3
|
30.33
|
115.6
|
146.9
|
4.3
|
||||
|
LH2034
|
BL1034
|
3×4
|
40.23
|
182.4
|
231.6
|
6.0
|
||||
|
LH2044
|
BL1044
|
4×4
|
45.19
|
231.3
|
291.5
|
6.9
|
||||
|
LH2046
|
BL1046
|
4×6
|
55.09
|
231.3
|
291.6
|
8.6
|
||||
|
LH2066
|
BL1066
|
6×6
|
65.00
|
347.0
|
430.3
|
10.3
|
||||
|
LH2088
|
BL1088
|
8×8
|
84.81
|
462.6
|
555.2
|
13.8
|
|
ISO链号
|
ANSI 链号
|
节距
|
链板组合
|
链板高度
|
链板厚度
|
销轴直径
|
销轴长度
|
极限拉伸载荷
|
平均拉伸载荷
|
每米长重
|
|
P
|
|
h2 max
|
T max
|
d2 max
|
L max
|
Q min
|
Q0
|
q
|
||
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
||
|
LH2422
|
BL1222
|
38.1
|
2×2
|
36.2
|
5.77
|
12.71
|
29.62
|
151.2
|
192.1
|
4.6
|
|
LH2423
|
BL1223
|
2×3
|
35.43
|
151.2
|
192.0
|
5.8
|
||||
|
LH2434
|
BL1234
|
3×4
|
47.07
|
244.6
|
308.3
|
8.1
|
||||
|
LH2444
|
BL1244
|
4×4
|
52.88
|
302.5
|
381.1
|
9.3
|
||||
|
LH2446
|
BL1246
|
4×6
|
64.52
|
302.5
|
381.1
|
11.6
|
||||
|
LH2466
|
BL1266
|
6×6
|
76.15
|
453.7
|
543.7
|
13.9
|
||||
|
LH2488
|
BL1288
|
8×8
|
99.42
|
605.0
|
726.0
|
18.6
|
||||
|
LH2822
|
BL1422
|
44.45
|
2×2
|
42.24
|
6.55
|
14.29
|
33.55
|
191.3
|
225.7
|
6.1
|
|
LH2823
|
BL1423
|
2×3
|
40.16
|
191.3
|
225.9
|
7.6
|
||||
|
LH2834
|
BL1434
|
3×4
|
53.37
|
315.8
|
372.6
|
10.6
|
||||
|
LH2844
|
BL1444
|
4×4
|
59.97
|
382.6
|
451.3
|
12.2
|
||||
|
LH2846
|
BL1446
|
4×6
|
73.18
|
382.6
|
451.2
|
15.2
|
||||
|
LH2866
|
BL1466
|
6×6
|
86.39
|
578.3
|
682.4
|
18.2
|
||||
|
LH2888
|
BL1488
|
8×8
|
112.8
|
765.1
|
902.9
|
24.3
|
||||
|
LH3222
|
BL1622
|
50.8
|
2×2
|
48.26
|
7.52
|
17.46
|
39.01
|
289.1
|
341.1
|
8.0
|
|
LH3223
|
BL1623
|
2×3
|
46.58
|
289.1
|
341.3
|
10.0
|
||||
|
LH3234
|
BL1634
|
3×4
|
61.72
|
440.4
|
519.6
|
14.0
|
||||
|
LH3244
|
BL1644
|
4×4
|
69.29
|
578.3
|
680.5
|
16.0
|
||||
|
LH3246
|
BL1646
|
4×6
|
84.43
|
578.3
|
680.4
|
20.0
|
||||
|
LH3266
|
BL1666
|
6×6
|
99.57
|
857.4
|
100.9
|
24.0
|
||||
|
LH3288
|
BL1688
|
8×8
|
129.84
|
1156.5
|
1364.6
|
32.0
|
||||
|
LH4022
|
BL2022
|
63.5
|
2×2
|
60.33
|
9.91
|
23.81
|
51.74
|
433.7
|
511.9
|
15.8
|
|
LH4023
|
BL2023
|
2×3
|
61.70
|
433.7
|
511.7
|
19.8
|
||||
|
LH4034
|
BL2034
|
3×4
|
81.61
|
649.4
|
766.3
|
27.7
|
||||
|
LH4044
|
BL2044
|
4×4
|
91.57
|
867.4
|
1023.5
|
31.6
|
||||
|
LH4046
|
BL2046
|
4×6
|
111.48
|
867.4
|
1023.7
|
39.5
|
||||
|
LH4066
|
BL2066
|
6×6
|
131.39
|
1301.1
|
1535.2
|
47.4
|
||||
|
LH4088
|
BL2088
|
8×8
|
171.22
|
1734.8
|
2046.6
|
63.2
|
