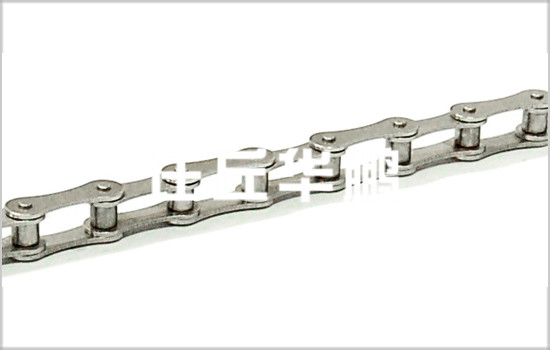

地址：河北省任丘市城东野王庄双节距传动链
点击量：发布时间：2019-03-25 19:56
|

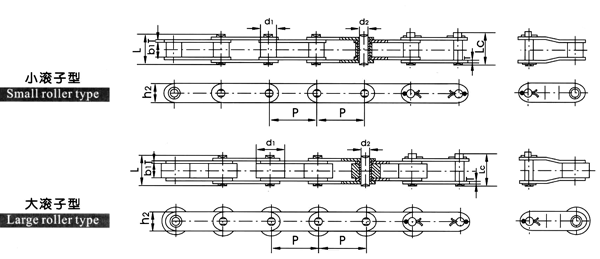

DIN ISO 链号
|
ANSI 链号
|
节距
|
滚子
直径 |
内节
内宽 |
销轴
直径 |
销轴长度
|
内链板
高度 |
极限拉伸
载荷 |
平均拉伸
载荷 |
每米
长重 |
|
|
P
|
d1max
|
b1 min
|
d2 max
|
L max
|
Lc max
|
h2 max
|
Q min
|
Q0
|
q
|
||
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
||
|
208A
|
2040
|
25.4
|
7.95
|
7.85
|
3.96
|
16.6
|
18.8
|
12.0
|
14.1
|
16.3
|
0.42
|
|
208B
|
|
25.4
|
8.51
|
7.75
|
4.45
|
16.7
|
18.2
|
11.8
|
18.0
|
19.5
|
0.45
|
|
210A
|
2050
|
31.75
|
10.16
|
9.40
|
5.08
|
20.7
|
23.3
|
15.0
|
22.0
|
26.0
|
0.73
|
|
210B
|
|
31.75
|
10.16
|
9.65
|
5.08
|
19.5
|
20.9
|
14.7
|
22.4
|
26.5
|
0.65
|
|
212A
|
2060
|
38.1
|
11.90
|
12.57
|
5.94
|
25.9
|
28.3
|
18.0
|
31.8
|
33.6
|
1.02
|
|
212B
|
|
38.1
|
12.07
|
11.68
|
5.72
|
22.5
|
25.2
|
16.0
|
29.0
|
32.2
|
0.76
|
|
216A
|
2080
|
50.8
|
15.88
|
15.75
|
7.92
|
32.7
|
36.5
|
24.0
|
56.7
|
65.0
|
1.70
|
|
216AH
|
|
50.8
|
15.88
|
15.75
|
7.92
|
36.2
|
39.4
|
24.0
|
56.7
|
68.8
|
2.17
|
|
216B
|
|
50.8
|
15.88
|
17.02
|
8.28
|
36.1
|
39.1
|
21.0
|
60.0
|
70.8
|
1.75
|
|
220A
|
2100
|
63.5
|
19.05
|
18.90
|
9.53
|
40.4
|
44.7
|
30.0
|
88.5
|
101.8
|
2.55
|
|
220B
|
|
63.5
|
19.05
|
19.56
|
10.19
|
41.3
|
45.0
|
26.4
|
95.0
|
101.5
|
2.62
|
|
224A
|
2120
|
76.2
|
22.23
|
25.22
|
11.1
|
50.3
|
54.3
|
35.7
|
127.0
|
147.1
|
4.06
|
|
224B
|
|
76.2
|
25.4
|
25.4
|
14.63
|
53.4
|
57.8
|
33.2
|
160.0
|
174.0
|
4.70
|
|
228B
|
|
88.9
|
27.94
|
30.99
|
15.90
|
65.1
|
69.5
|
36.7
|
200.0
|
214.4
|
6.23
|
|
232B
|
|
101.6
|
29.21
|
30.99
|
17.81
|
66.0
|
71.0
|
42.0
|
250.0
|
267.5
|
6.72
|
