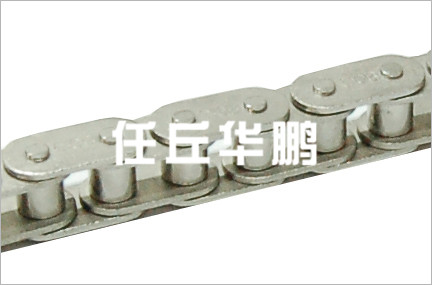

地址：河北省任丘市城东野王庄B系列直板滚子链
点击量：发布时间：2019-03-25 21:03
|

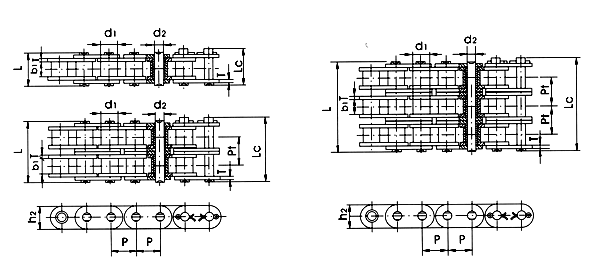

ISO 链号
|
节距
|
滚子
直径 |
内节
内宽 |
销轴
直径 |
销轴长度
|
内链板
高度 |
排矩
|
极限拉伸
载荷 |
平均拉伸
载荷 |
每米
长重 |
|
|
P
|
d1 max
|
b1min
|
d2 max
|
L max
|
Lc max
|
h2 max
|
Pt
|
Q min
|
Q0
|
q
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
|
|
C08B-1
|
12.7
|
8.51
|
7.75
|
4.45
|
16.7
|
18.2
|
11.8
|
|
18.0
|
19.4
|
0.80
|
|
C10B-1
|
15.875
|
10.16
|
9.65
|
5.08
|
19.5
|
20.9
|
14.7
|
|
22.4
|
26.8
|
1.06
|
|
C12B-1
|
19.05
|
12.07
|
11.68
|
5.72
|
22.5
|
25.2
|
116.0
|
|
29.0
|
31.2
|
1.32
|
|
C16B-1
|
25.4
|
15.88
|
17.02
|
8.28
|
36.1
|
39.1
|
21.0
|
|
60.0
|
70.0
|
2.90
|
|
C20B-1
|
31.75
|
19.05
|
19.56
|
10.19
|
41.3
|
45.0
|
26.4
|
|
95.0
|
101.5
|
4.16
|
|
C24B-1
|
38.1
|
25.40
|
25.40
|
14.63
|
53.4
|
57.8
|
33.2
|
|
1160.0
|
174.0
|
7.47
|
|
C28B-1
|
44.45
|
27.94
|
30.99
|
15.90
|
65.1
|
69.5
|
36.7
|
|
200.0
|
214.0
|
9.90
|
|
C32B-1
|
50.8
|
29.21
|
30.99
|
17.81
|
66.0
|
71.0
|
42.0
|
|
250.0
|
267.4
|
110.45
|
|
C08B-2
|
12.7
|
8.51
|
7.75
|
4.45
|
31.2
|
32.2
|
11.8
|
13.92
|
32.0
|
37.4
|
1.45
|
|
C10B-2
|
15.875
|
10.16
|
9.65
|
5.08
|
36.1
|
37.5
|
48.0
|
16.59
|
44.5
|
57.9
|
2.00
|
|
C12B-2
|
19.05
|
12.07
|
11.68
|
5.72
|
42.0
|
44.7
|
53.6
|
19.46
|
57.8
|
65.7
|
2.62
|
|
C16B-2
|
25.4
|
15.88
|
17.02
|
8.28
|
68.0
|
71.0
|
60.0
|
31.88
|
106.0
|
124.4
|
5.80
|
|
C20B-2
|
31.75
|
19.05
|
19.56
|
10.19
|
77.8
|
81.5
|
72.39
|
36.45
|
170.0
|
210.0
|
8.23
|
|
C24B-2
|
38.1
|
25.40
|
25.40
|
14.63
|
101.7
|
106.2
|
5.90
|
48.36
|
280.0
|
304.5
|
14.77
|
|
C28B-2
|
44.45
|
27.94
|
30.99
|
15.90
|
124.6
|
129.1
|
8.95
|
59.56
|
360.0
|
385.3
|
19.68
|
|
C32B-2
|
50.8
|
29.21
|
30.99
|
17.81
|
124.6
|
129.6
|
11.90
|
58.55
|
450.0
|
477.0
|
20.62
|
|
C08B-3
|
12.7
|
8.51
|
7.75
|
4.45
|
45.1
|
461
|
15.00
|
13.92
|
47.5
|
50.4
|
2.10
|
|
C10B-3
|
15.875
|
10.16
|
9.65
|
5.08
|
52.7
|
54.1
|
18.0
|
16.59
|
66.7
|
79.6
|
2.87
|
|
C12B-3
|
19.05
|
12.07
|
11.68
|
5.72
|
61.5
|
64.2
|
21.10
|
19.46
|
186.7
|
101.9
|
3.89
|
|
C16B-3
|
25.4
|
15.88
|
17.02
|
8.28
|
99.8
|
102.9
|
30.10
|
31.88
|
160.0
|
188.0
|
8.70
|
|
C20B-3
|
31.75
|
19.05
|
19.56
|
10.19
|
114.2
|
117.9
|
36.0
|
36.45
|
250.0
|
266.7
|
111.34
|
|
C24B-3
|
38.1
|
25.40
|
25.40
|
14.63
|
150.1
|
154.6
|
42.0
|
48.36
|
425.0
|
462.2
|
22.10
|
|
C28B-3
|
44.45
|
27.94
|
30.99
|
15.90
|
184.2
|
188.7
|
48.0
|
59.56
|
530.0
|
561.7
|
29.47
|
|
C32B-3
|
50.8
|
29.21
|
30.99
|
17.81
|
183.2
|
188.2
|
53.6
|
58.55
|
670.0
|
710.3
|
30.85
|
