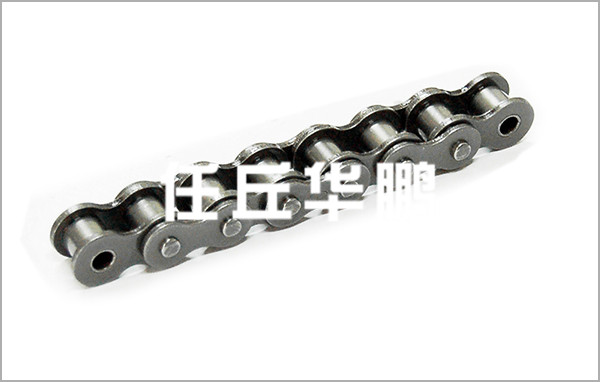

地址：河北省任丘市城东野王庄单排滚子链
点击量：发布时间：2019-03-25 21:01
|

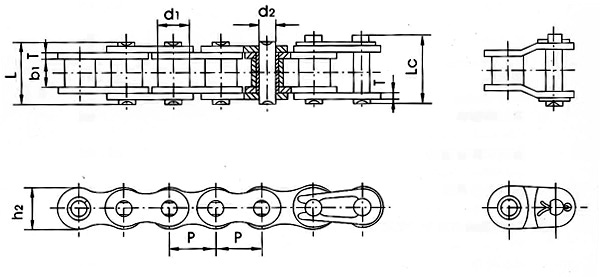

DIN ISO
链号 |
ANSI
链号 |
节距
|
滚子
直径 |
内节
内宽 |
销轴
直径 |
销轴长度
|
内链板
高度 |
极限拉伸载荷
|
平均拉伸
载荷 |
每米
长重 |
|
|
P
|
d1 max
|
b1 min
|
d2 max
|
L max
|
Lc max
|
h2 max
|
Q min
|
Q0
|
q
|
||
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
KN
|
KN
|
kg/m
|
||
|
*04C-1
|
*25
|
6.35
|
3.30
|
3.18
|
2.31
|
7.80
|
8.45
|
5.90
|
3.5
|
4.3
|
0.15
|
|
*06C-1
|
*35
|
9.525
|
5.08
|
4.77
|
3.58
|
12.15
|
13.1
|
8.95
|
7.9
|
9.8
|
0.33
|
|
085-1
|
41
|
12.7
|
7.77
|
6.25
|
3.58
|
13.75
|
15.4
|
9.90
|
6.67
|
11.7
|
0.41
|
|
08A-1
|
40
|
12.7
|
7.95
|
7.85
|
3.96
|
16.6
|
17.75
|
11.90
|
14.1
|
17.1
|
0.62
|
|
10A-1
|
50
|
15.875
|
10.16
|
9.40
|
5.08
|
20.90
|
22.2
|
15.09
|
22.2
|
26.4
|
1.02
|
|
12A-1
|
60
|
19.05
|
11.91
|
12.57
|
5.94
|
25.9
|
27.5
|
18.0
|
31.8
|
38.8
|
1.50
|
|
16A-1
|
80
|
25.4
|
15.88
|
15.75
|
7.92
|
32.80
|
34.9
|
24.10
|
56.7
|
64.8
|
2.60
|
|
20A-1
|
100
|
31.75
|
19.05
|
18.90
|
9.53
|
40.0
|
43.2
|
30.10
|
88.5
|
101.8
|
3.91
|
|
24A-1
|
120
|
38.1
|
22.23
|
25.22
|
11.10
|
50.45
|
53.4
|
36.10
|
127.0
|
147.1
|
5.62
|
|
28A-1
|
140
|
44.45
|
25.40
|
25.22
|
12.70
|
54.20
|
59.0
|
42.10
|
172.4
|
197.9
|
7.50
|
|
32A-1
|
160
|
50.8
|
28.58
|
31.55
|
14.27
|
64.30
|
69.6
|
48.10
|
226.8
|
260.2
|
10.10
|
|
36A-1
|
180
|
57.15
|
35.71
|
35.48
|
17.46
|
72.8
|
78.6
|
53.6
|
280.2
|
327.9
|
13.45
|
|
40A-1
|
200
|
63.5
|
39.68
|
37.85
|
19.85
|
80.3
|
87.2
|
60.0
|
353.8
|
405.0
|
16.15
|
|
48A-1
|
240
|
76.2
|
47.63
|
47.35
|
23.81
|
95.5
|
103.0
|
72.39
|
510.3
|
585.5
|
23.20
|
